6. Horizon Charts

This function allows the users to analyze several time series of monitoring attributes simultaneously through a visual representation combining positions and colors, setting the period on the x-axis and the selected filters on the y-axis

6.1 Parameters

The users must select:

  • Date
  • Station(s)
  • Satellite Constellation(s)
  • Monitoring indices (Fields)
  • Elevation Cutoff

Inputs

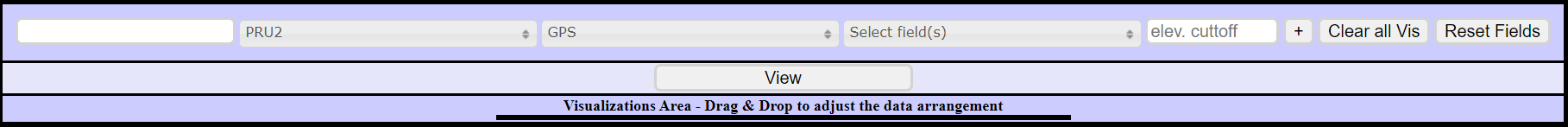

Figure 6.1.1 - Inputs

6.2 Generating the chart

After setting the filters, just click o the plus button to load the data into the visualization area.

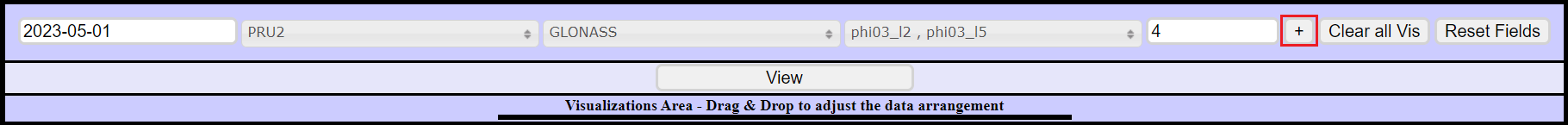

Inputs Figure 6.2.1 - Add Filter

Now you can see all the data that are according to the indicated filters, the order in which they are will be the same when generating the chart, to change it just drag and drop. It is also possible to delete unwanted data from the visualization using the del button.

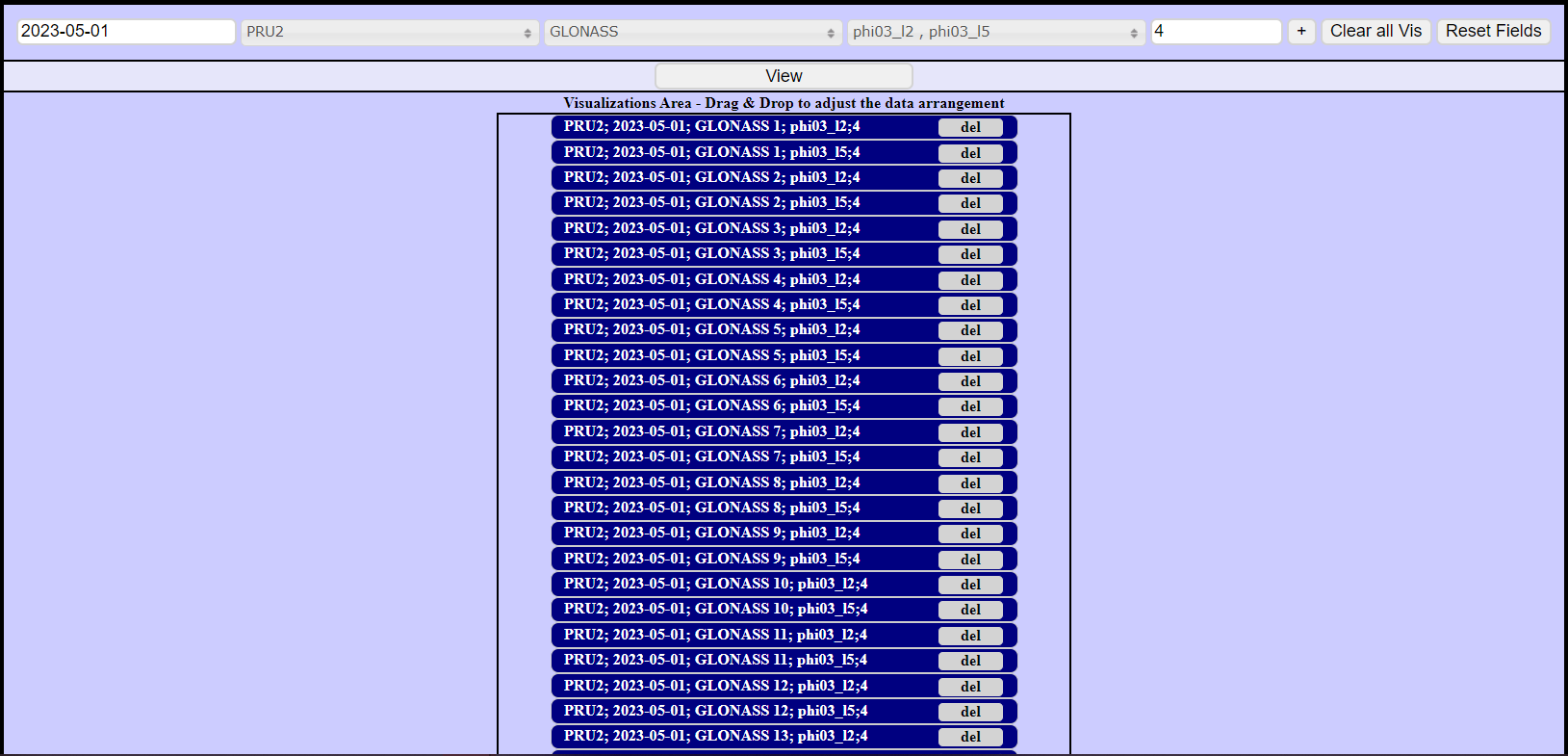

Data Figure 6.2.2 - Data

After that, just click on view and the chart will be generated.

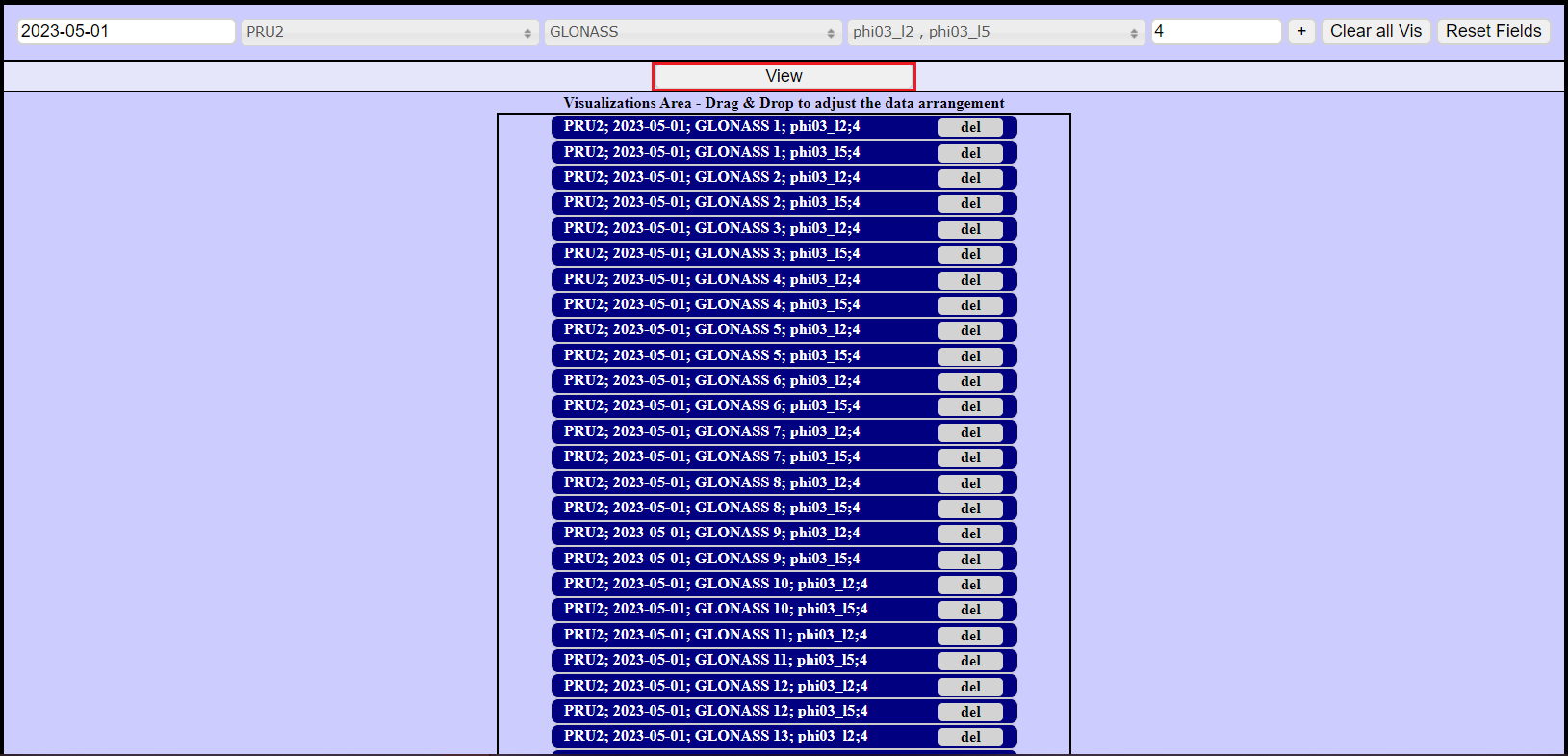

View Figure 6.2.3 - View

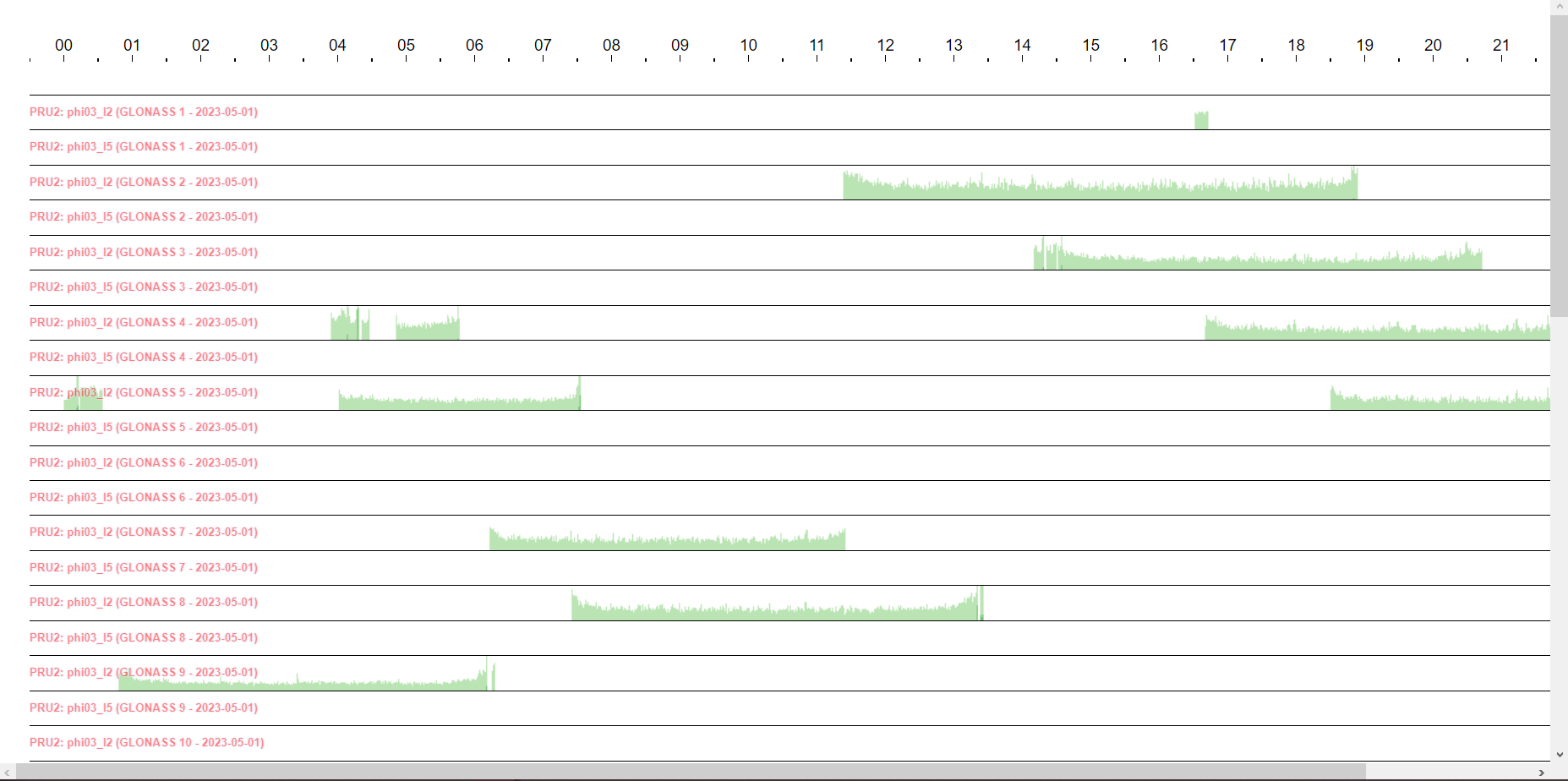

View Figure 6.2.4 - Output
