4. Grid

Here you can generate a list of scintillation values according to the selected fields and the desired time interval.

Fields

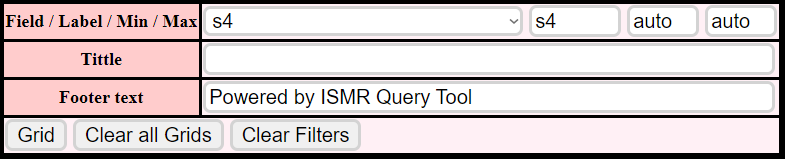

Figure 4.1 - Inputs

  • The details of the fields are specified in the "Attributes" tab

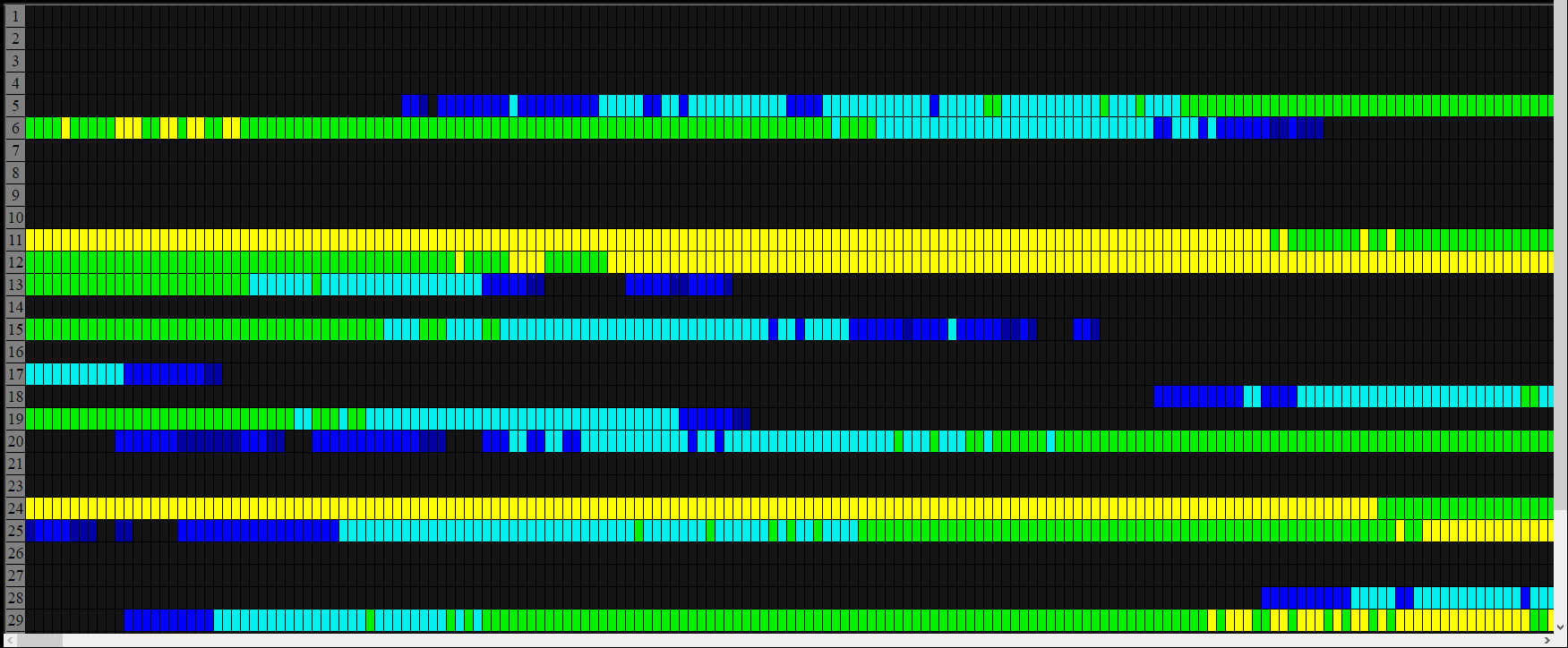

Output Figure 4.2 - Output

The data is loaded into each grid cell, to show it just hover the cursor over it and you will see something like this:

Information

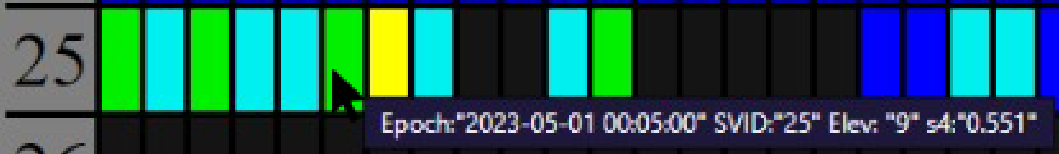

Figure 4.3 - Details

"Epoch" refers to the selected time interval

"SVID" identifies the satellites

"Elev" checks the angle of elevation

"S4"(the field selected to filter the data) indicates the value of the scintillation index
