8. Calendars

This function allows the visualization of the time series of scintillation monitoring data through a general perspective. Generating calendars mainly for the averaged daily value of the S4 index.

  • We have two variations of this function:

    1. Calendar View: generates calendars indicating the average value of s4 on each day;

    2. Calendar time interval view: generates calendars indicating the daily average and standard deviation of total S4 only in the time interval indicated by the user.

Gray cells indicate absence of data

Calendars are generated for each single station

8.1 Calendar View

The user must select the year to be visualized and the thresholds for displaying the information

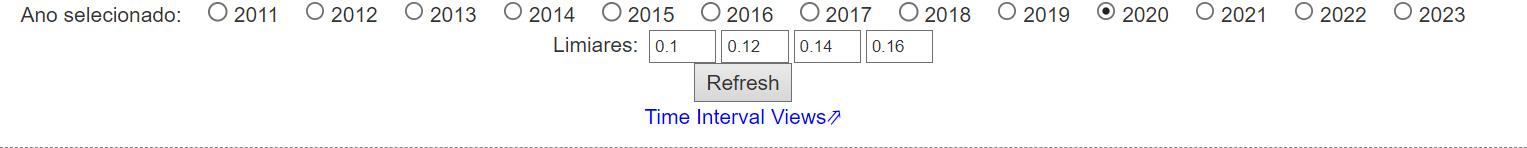

viewInput Figure 8.1.1 - Inputs

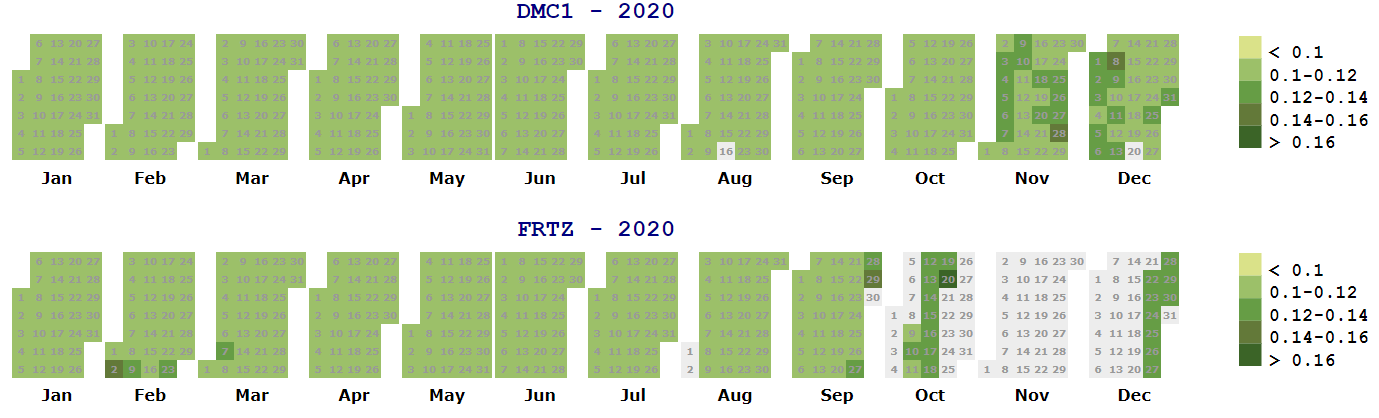

viewOutput Figure 8.1.2 - Output

8.2 Time Interval View

In addition to the year to be displayed and the thresholds for displaying the information, the user also indicates the desired time interval.

  • The standard deviation thresholds are dynamically set

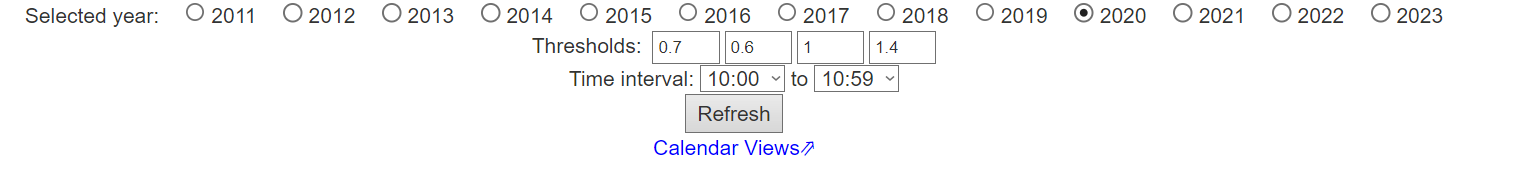

viewInput Figure 8.2.1 - Inputs

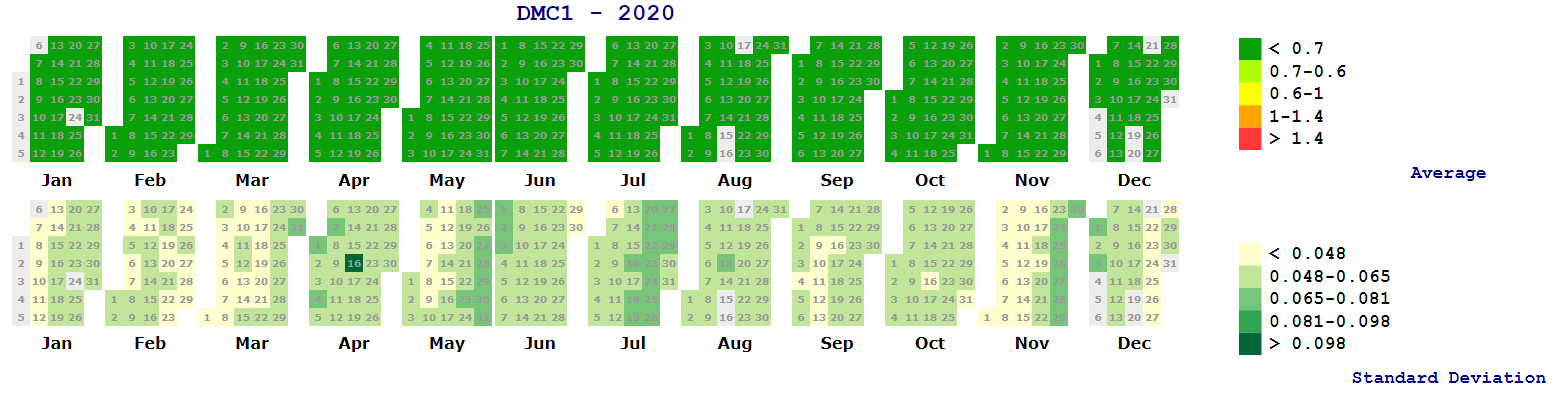

viewOutput Figure 8.2.2 - Output
